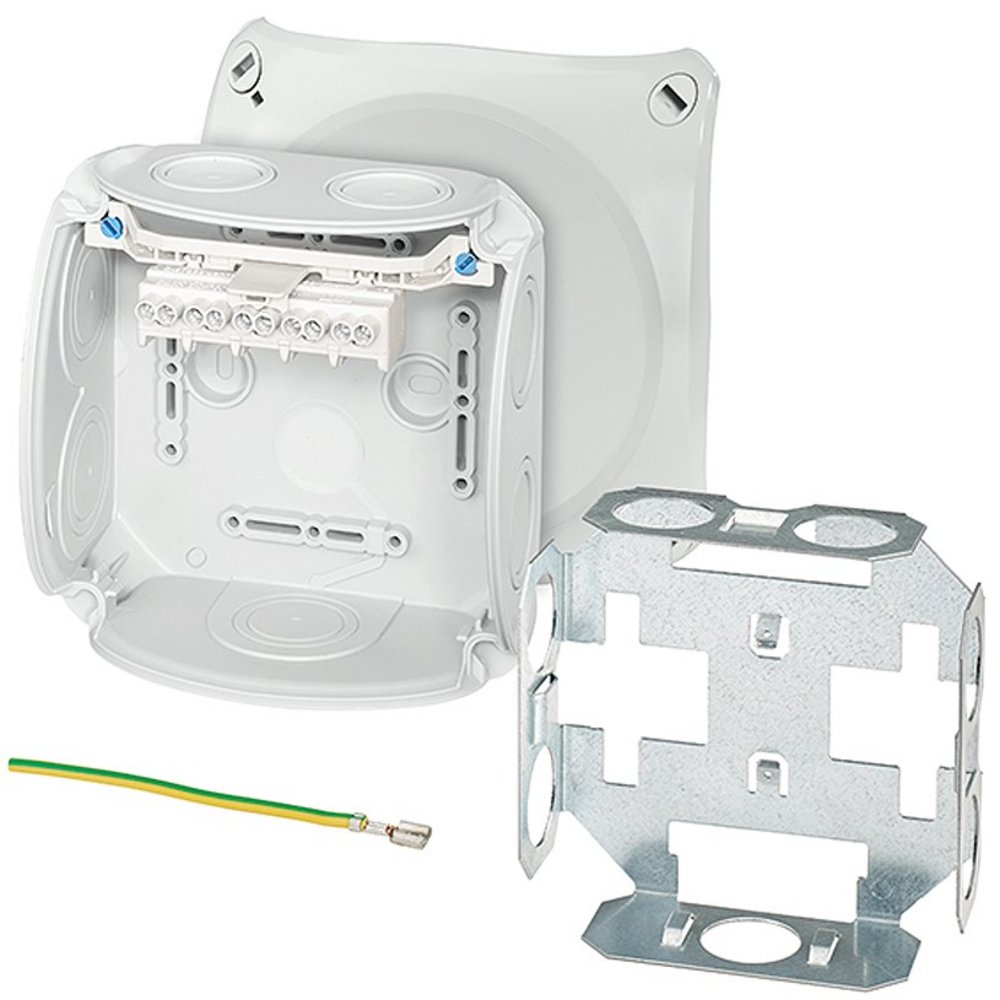

Junction Box with PE Inlay, 1.5mm²-4mm², 130mm x 130mm x 77mm, Polypropylene, Grey, IP66
Junction Box with PE Inlay, 1.5mm²-4mm², 130mm x 130mm x 77mm, Polypropylene, Grey, IP66
Part Code:
DK0604U
Stock Availability
Product Details
Part Code:
DK0604U
- 1.5mm²-4mm²
- Terminal with 2 clamping units per pole
- Patented PE inlay to connect the armours of SWA cables
- Elastic membranes, which can be removed for cable entry via cable glands, sealing range 9mm-21mm
- Lid fasteners sealable without accessories
- Retaining strap and external brackets for wall fixing included
- Close opened membranes use grommets type
Downloads
Specifications
| Colour | Grey |
| Current Rating | 32A |
| Depth | 77mm |
| EAN | 4012591135098 |
| Height | 130mm |
| IP Rating | IP66 |
| Manufacturer Part Code | DK0604U |
| UNSPSC Code | 39121332 |
| Width | 130mm |
