Digital Timer Control, 30, 60 and 120 Minutes, IP30

Secure

Digital Timer Control, 30, 60 and 120 Minutes, IP30

Part Code: SIR021 (E30)

Stock Availability
Product Details
Part Code: SIR021 (E30)
  • Switches loads up to 3 kW (resistive)
  • Flush or surface mounting
  • ‘Countdown’ LED indicator light

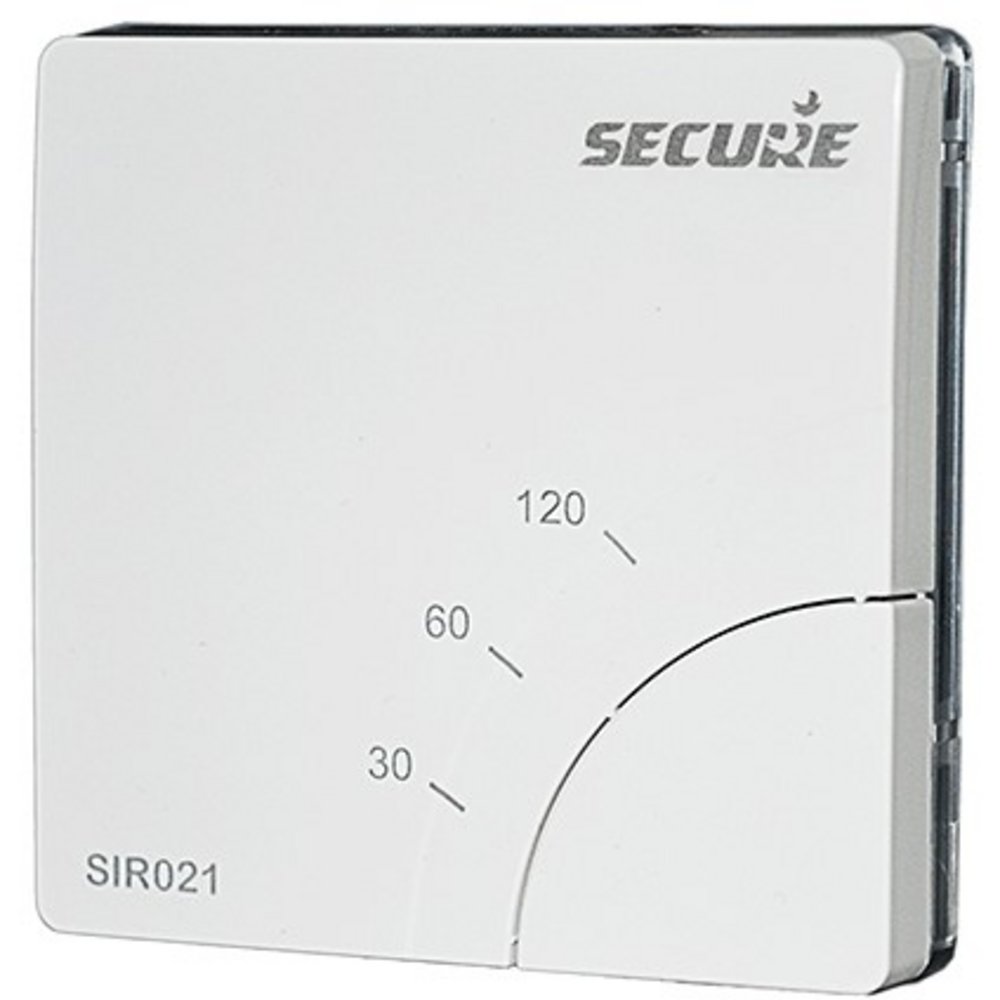

SIR021 is a digital timer control, featuring a simple pushbutton to switch on a load for a fixed period. Each press of the pushbutton cycles the timer through the available periods, as shown by indicator LEDs. The connected load is automatically switched off at the end of the preset time, or it can be switched off manually using the pushbutton. Large energy savings are possible by adding this simple device to any electrical appliance, up to 3 kW (resistive). These units are perfect as boiler override or extension timers and can be used on panel heaters, immersion heaters, heated towel rails, and oil-filled radiators. Boost times range from 15/30/60-minutes.

Downloads
Specifications
Depth 44mm
Height 85mm
Manufacturer Part Code SIR021 (E30)
Timer Type 30min, 60min, 120min
Width 85mm
