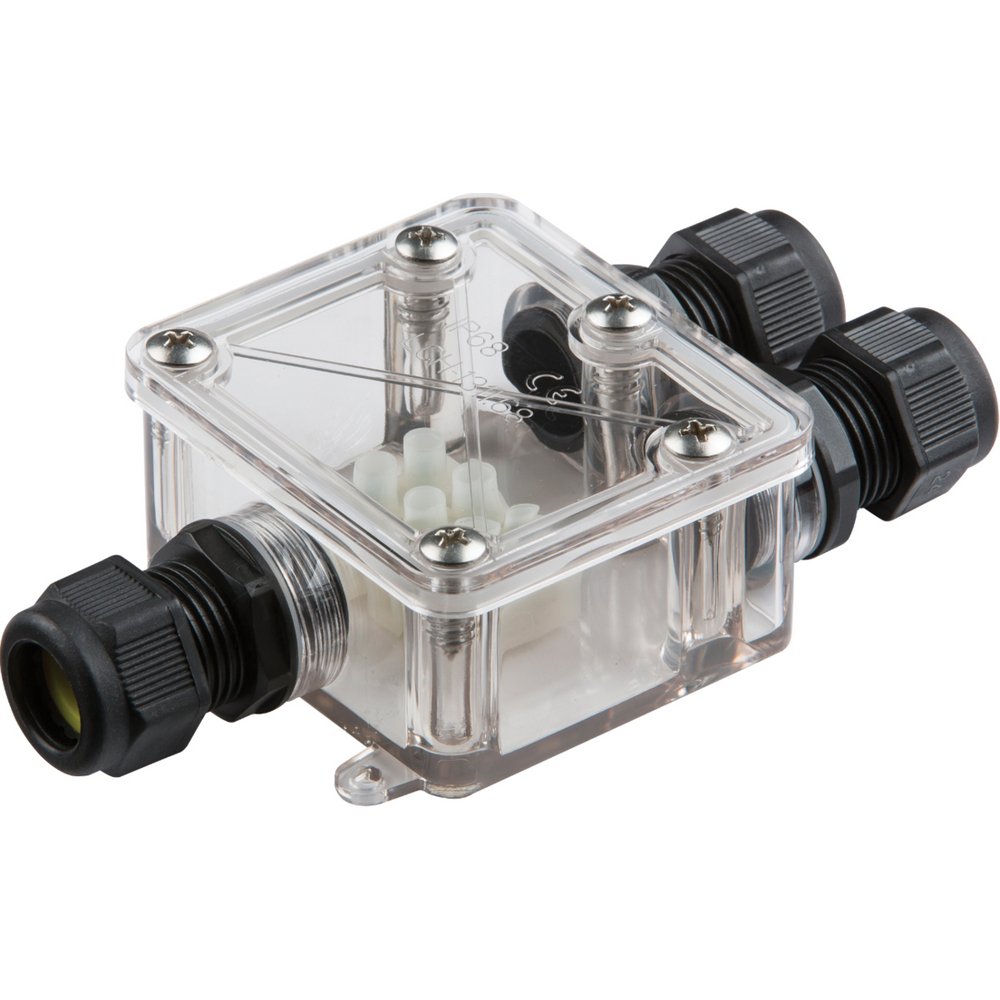

16A Weatherproof Connector Box, IP68, Clear
16A Weatherproof Connector Box, IP68, Clear
Part Code:
JB004
Stock Availability
Please contact your local store for details
Product Details
Part Code:
JB004
- P68 rated (@2bar)
- 16A 450V PTI 250, T85
- Polycarbonate housing with silicon sealing gasket
- 16A 3 terminal strip connector mounted inside
- Min: 5mm cable diameter
- Max: 10mm cable diameter
- For use with H07RNF 3G 0.75mm² - 4mm² cable
- Certified to EN 50262
Downloads
Specifications
| Colour | Clear |
| Current Rating | 16A |
| Depth | 121mm |
| EAN | 5055559193104 |
| Height | 35mm |
| IP Rating | IP68 |
| Manufacturer Part Code | JB004 |
| Width | 72mm |
